Best suited to commercial lanes, condos and plants in Canada. Factory-direct boom barrier gate. Winter-rated components.. Quote in 24 h.
Product Overview
Performance Test Data
Test conditions: 24 h soak at -40 °C and +60 °C in a climate chamber, 3 m aluminum boom, 230 V AC supply, 100% duty cycling. Results: average open/close cycle 0.9 s (1.2 s at 4.5 m), 5,000,000 mechanical cycles without failure, IP65 water ingress rating after spray test, boom wind-load rated to 120 km/h. Benchmark: entry-level gates typically rate 3,000,000 cycles, -20 °C cold start and IP54; this unit exceeds all three, meeting Canadian winter parking requirements.
Technical Specifications

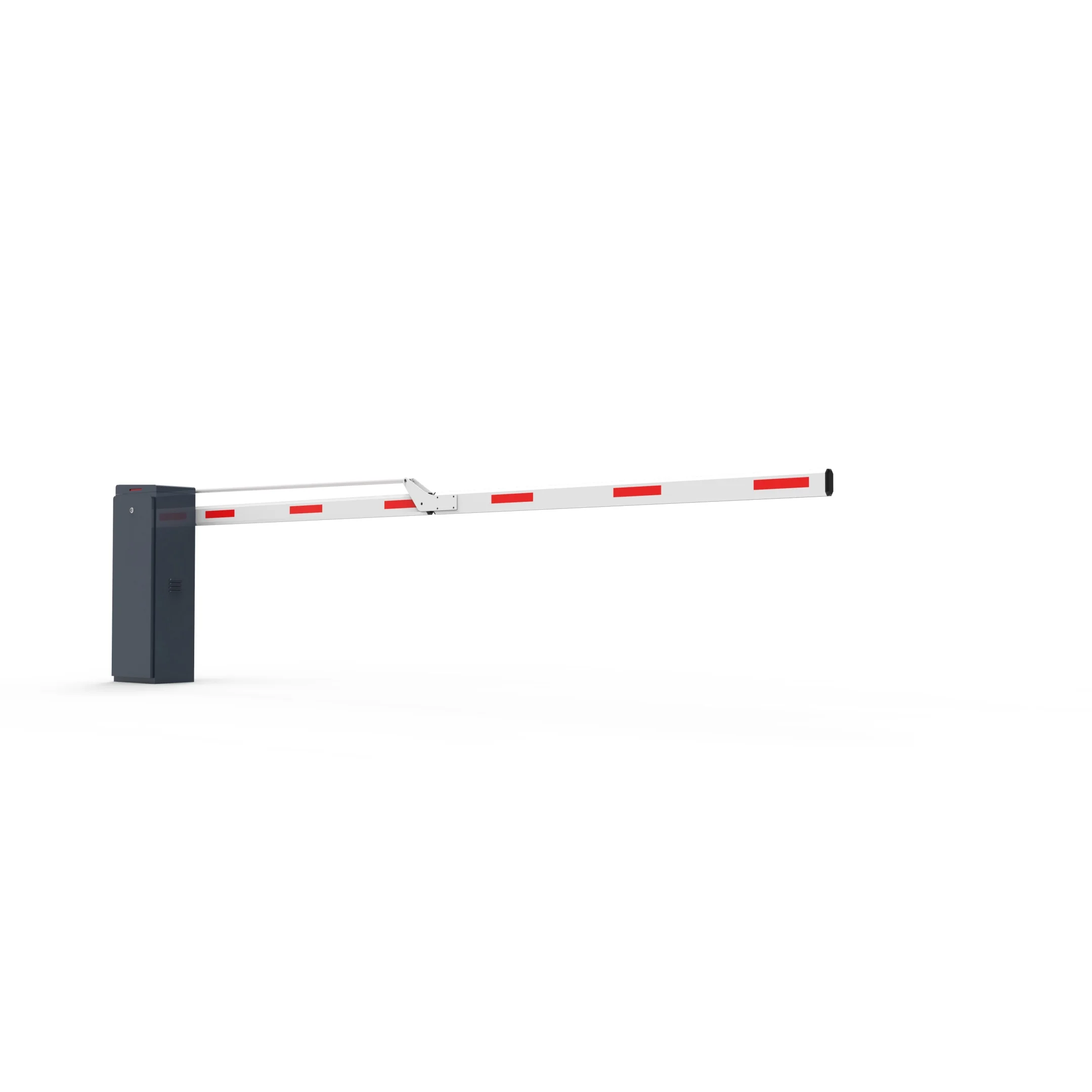

Baroxon YH-0DZ1920PRO Intelligent Automatic Parking Barrier System
The Baroxon YH-0DZ1920PRO represents a professional-grade vehicle access control system meticulously engineered for high-traffic facilities across Canada, delivering industry-leading reliability and robust perimeter protection performance.
Core Technical Specifications
| Access Type | Card, Pin Code, Key, Smartphone, Others | Special Capabilities | Remote open/close logic, OEM&ODM support |
| Data Storage | Cloud, Memory Card | Chassis Materials | Cold-rolled Steel, Stainless Steel, Zinc Alloy |
| Place of Origin | Shandong, China | Model Number | YH-0DZ1920PRO |
| Manufacturer Brand | Baroxon | Input Voltage | DC 24V Brushless / AC 110V / Servo Motor |
| Motor Power Supply | 110/220VAC +10% | Drive Mechanism | 24V DC brushless motor |
| Operating Speed | 3S-6S | Maximum Arm Length | ≤4 meters |
| Chassis Dimensions | 1015*320*225 MM | Remote Control Range | ≤30m |
| Operating Temperature | -30℃~80℃ | Weatherproof Rating | IP55 |
Packaging and Shipping Configuration
| Sales Unit | Single item |
User-friendly interface featuring an integrated motherboard designed for intuitive operational management.
Modular build configuration ensures rapid on-site installation and streamlined field upkeep.
Stable architectural design leveraging a high-efficiency automatic parking barrier arm powered by a DC brushless motor and advanced frequency conversion technology for whisper-quiet, smooth, and precise movement.
Intelligent safety protocols equipped with anti-collision sensing, auto-rebound, and manual power-failure lifting functions.
Fully compatible with various peripheral hardware including contactless card readers, swing turnstiles, pedestrian speed gates, inductive vehicle loop detectors, and sophisticated smart boom barrier gate controllers.
Deployment Applications: Shopping malls, office towers, commercial complexes, hotels, resorts, exhibition centers, residential condominiums, private villas, industrial parks, logistics hubs, warehouses, airports, railway stations, hospitals, government complexes, universities, sports stadiums, and highway toll plazas.
Product Demonstration & Testing Videos
Product Structural Diagrams
About Baroxon - Premier Traffic Barrier Gate Manufacturer
Baroxon delivers complete engineering and manufacturing solutions for perimeter security and access control, securing entry points for commercial and industrial clients worldwide.
Strategic Market Standing: Specialists in heavy-duty boom barriers, multi-tier fence gates, and LPR software integration.
Global Reach: Serving corporate partners across more than 200 countries, spanning major international markets.
Full-Service Support: Providing comprehensive site assessments, custom blueprint design, and hardware installation training.
Innovation Leadership: Holding over 100 patents in DC brushless control boards and safety-integrated barrier protocols.
Mechanical Advantages & Facility Overview
Frequently Asked Questions (FAQ)
Q1: What speed configurations are available for this barrier gate?
A: Standard operation speeds range from 3s to 6s, fully adjustable to accommodate high-volume traffic lanes.
Q2: Is this system compatible with LPR and RFID scanners?
A: Yes, our gates seamlessly integrate with License Plate Recognition cameras, RFID tags, and long-range UHF readers.
Q3: How durable is the enclosure against outdoor weathering?
A: Built for harsh outdoor elements featuring IP55 waterproof protection and UV-resistant industrial powder coating.
Q4: What integrated safety mechanisms come standard?
A: Built-in safeguards include anti-collision sensors, auto-rebound protection, and manual clutch override during power blackouts.
