Top pick for commercial lanes, condos and plants in Canada. Factory-direct boom barrier gate, with anti-collision protection. Bilingual manuals.

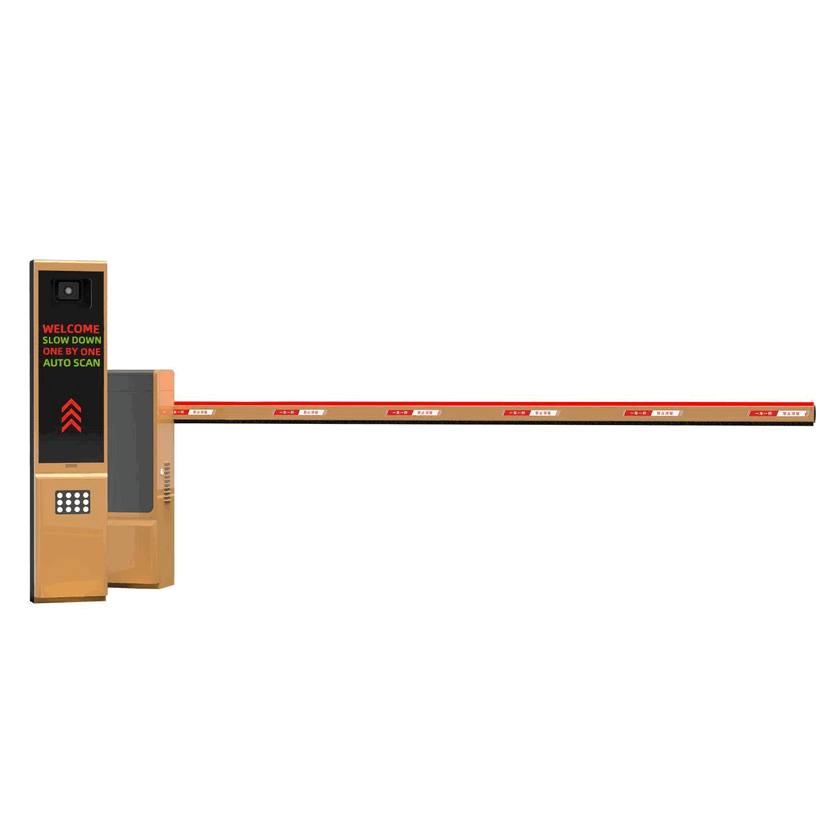

Product Overview
Performance Test Data
Test conditions: 24 h soak at -40 °C and +60 °C in a climate chamber, 3 m aluminum boom, 230 V AC supply, 100% duty cycling. Results: average open/close cycle 0.9 s (1.2 s at 4.5 m), 5,000,000 mechanical cycles without failure, IP65 water ingress rating after spray test, boom wind-load rated to 120 km/h. Benchmark: entry-level gates typically rate 3,000,000 cycles, -20 °C cold start and IP54; this unit exceeds all three, meeting Canadian winter parking requirements.
Technical Specifications
Key Specifications & Technical Attributes
| Access Type | RFID Proximity Card, Keypad PIN, Mobile App, UHF Tag | Special Features | Anti-Collision Rebound, Emergency Manual Clutch, Loop Detector Port, Infrared Beam Interface |
| Storage Medium | Cloud Storage, Local SD Card | Chassis Material | 2.0mm Cold-rolled Steel, Stainless Steel Options |
| Place of Origin | Shandong, China | Model Number | YH-PDPY601 |
| Brand Name | Baroxon | Motor Type | DC 24V Brushless / AC 220V / Servo Motor |
| Duty Cycle | 100% / Continuous / 5000 cycles per day | Opening/Closing Speed | 0.6s / 0.9s / 1.5s - 6s (Adjustable) |
| Boom Arm Type | Straight / Folding (90°/180°) / Fence (Two/Three-rail) | Arm Length Range | 1m - 6m (Customizable) |
| Power Consumption | Peak: 140W / Standby:<5W | MCBF | 3 million / 5 million / 10 million times |
| Housing Material & Thickness | 2.0mm Cold-rolled Steel / Powder Coating | MTTR | < 30 mins |
| Protection Class | IP54 / IP65 / IP66 |
Packaging and Shipping Details
| Selling Units | Single item with reinforced export wooden crating |
Smart Logic Control Board: Fitted with an advanced industrial control mainboard for streamlined parameter configuration, facilitating seamless credential validation for premier smart vehicle barrier gantry installations across commercial properties in Canada.
Modular Barrier Architecture: Standardized structural framework simplifies on-site deployment and fast-tracks preventive maintenance procedures, providing reliable barrier operation engineered for high-density traffic complexes.
Enhanced Powertrain Stability: Driven by a high-performance DC brushless motor synchronized with digital inverter frequency profiles to guarantee exceptionally smooth, stable, and quiet boom arm travel at expressway tolls and commercial checkpoints.
Proactive Multi-Tiered Safety: Features intelligent obstruction sensing, auto-rebound action upon resistance, vehicle anti-collision monitoring, and an emergency manual clutch release for continuous operation during power disruptions.
Comprehensive System Integration: Architecture natively interfaces with card pedestals, turnstiles, and perimeter security gates, fully compatible with advanced Baroxon inductive loop vehicle detectors.
Versatile Deployment Needs: Engineered specifically for high-volume traffic regulation in commercial malls, corporate headquarters, transport hubs, hotels, luxury residential estates, and multi-storey carparks.
Product Demonstration & Quality Testing Videos
Watch our heavy-duty automatic barrier gates and electric security boom operators undergo rigorous field testing below:
Mechanical Structure Photos & Breakdown Diagrams
About Baroxon - Premier Traffic Barrier Gate Manufacturer
As a leading technical manufacturer, Baroxon delivers comprehensive hardware and software integration for modern vehicle access control systems. Our heavy-duty security boom arm gate mechanisms provide unmatched operational durability for property managers and security contractors across the region.
Strategic Market Positioning: Specialized focus on straight arm automatic barriers, industrial fence barriers, and sophisticated IU-compatible license plate recognition system architectures.
Global Footprint: Supplying expressways, residential property developers, and corporate complexes across international markets.
Full Project Support: Comprehensive assistance ranging from architectural design consultation and perimeter security assessment to remote technical support.
Practical Structural Design: Optimized internal layouts allow rapid deployment and straightforward maintenance procedures in field operations.
Technological Innovation: Holder of over 100 hardware patents, including advanced DC brushless control logic and high-sensitivity obstacle detection sensors.
Professional Engineering Team: Dedicated industrial mechanical experts backed by more than 20 years of industry experience.
Service Commitment: Guaranteed 1-minute online response, 2-hour technical diagnostics, and problem resolution within 48 hours.
Customization Capabilities & OEM Showroom
Product Mechanical Advantages

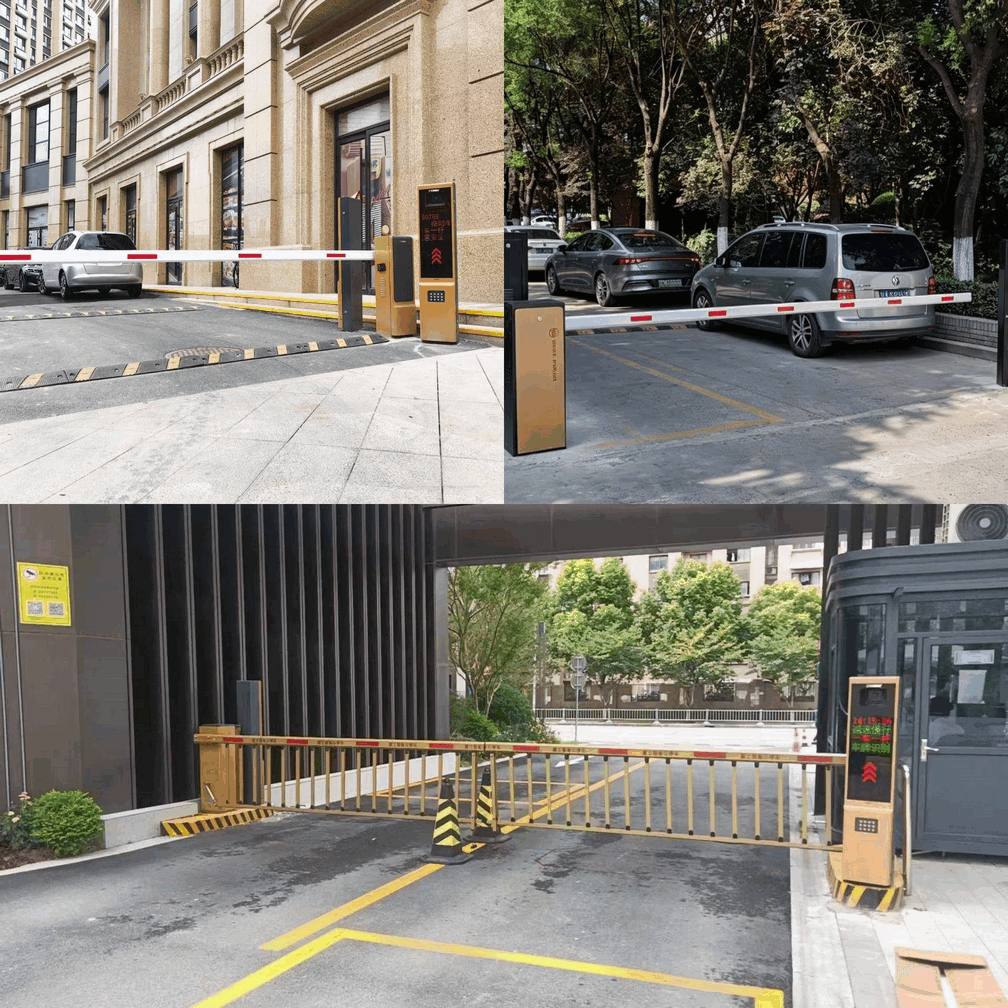

Real-World Project Applications
Manufacturing & Company Summary
Live Traffic Scenes
Competitive Advantages & Certifications

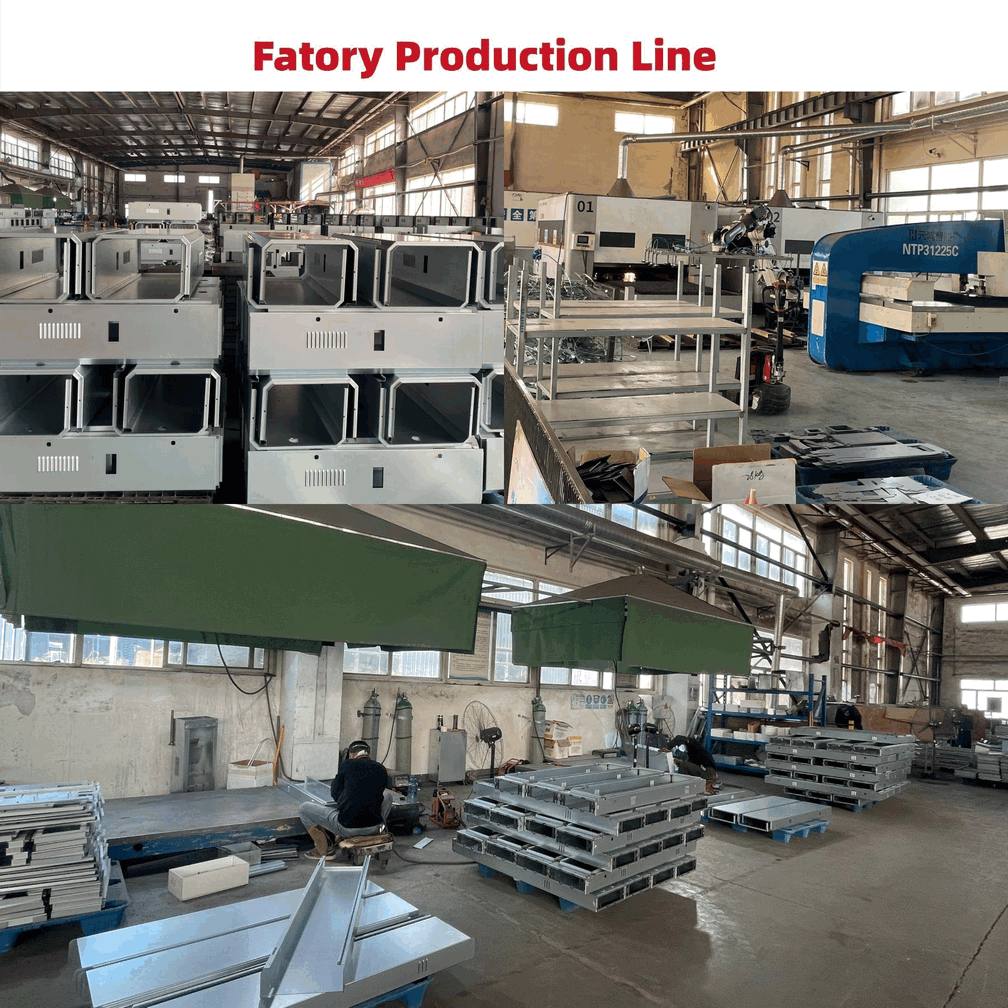

Production Workshop
Global Logistics
Frequently Asked Questions (FAQ)
Q1: Can the opening and closing travel speeds of the barrier arm be adjusted?
A: Yes, operational speeds can be precisely configured via the core logic control board from 0.6s to 6s, perfectly matching high-speed toll road lanes or commercial parking entrances.
Q2: Is the power system compatible with global electrical grids and alternative energy setups?
A: Yes. The system supports standard AC voltages alongside an energy-efficient DC 24V brushless motor architecture designed for seamless solar panel and battery backup integration.
Q3: What is the maximum boom arm span length supported by the drive mechanism?
A: Our torque-optimized design supports robust aluminum alloy arms ranging from 1m up to 6m, with optional 90° or 180° folding profiles for low-clearance basement parking structures.
Q4: Can this vehicle gate integrate smoothly with LPR cameras and RFID readers?
A: Absolutely. Our control board features standard industrial interfaces including dry contact relays, RS485 ports, and Wiegand protocols for direct connection with license plate recognition cameras and UHF systems.
Q5: How resilient is the outdoor housing chassis against severe environmental corrosion?
A: Built from 2.0mm thick cold-rolled steel meeting IP54/IP65/IP66 ratings, every enclosure undergoes multi-stage anti-UV powder coating to withstand heavy tropical downpours and intense heat.
Q6: What active safety mechanisms are built in to prevent accidental vehicle or pedestrian impacts?
A: The unit features smart digital obstacle detection with automatic reverse logic, inductive loop detector ports, and an emergency manual clutch release mechanism.
Q7: What is the certified operational lifespan and duty cycle of the motor core?
A: Powered by a premium brushless motor, the system achieves a Mean Cycles Between Failure (MCBF) of up to 10 million cycles, engineered for 100% continuous heavy-duty operation.
